Automatic Level
Product Details:
Product Description

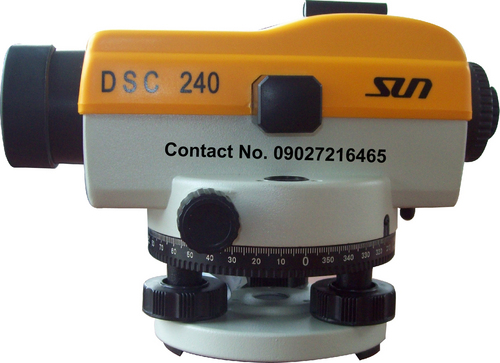

Sun Auto Level
We supply our clients Sun Auto Levels. These are provided with fully sealed structure to protect from dust, humidity and resistance to rain and accidental dousing. Further, these are appreciated and demanded in the market for the following features and specifications as listed below:
Technical Data
Model | DSC220 | DSC222 | DSC224 | DSC226 | DSC228 | DSC230 | DSC232 | |
Standard deviation for lkm double run levelling | 2.5mm | 2.0mm | 1.5mm | 1.0mm | ||||
Image | Erect | |||||||
Magnification | 20X | 22X | 24X | 26X | 28X | 30X | 32X | |
Objective aperture | 34mm | 36mm | 38mm | |||||
Field of view | 1°20' | |||||||
Minimum focus | 0.3m | |||||||
Multiplication constant | 100 | |||||||
Additive constant | 0 | |||||||
Compensator range | ± 15' | |||||||
Compensator setting accuracy | ± 0.8†| ± 0.6†| ± 0.5†| |||||
Sensitivity of bubble | 8 ' /2mm | |||||||
Horiz. circle reading | 1° or 1gon | |||||||
Instrument weight | 1.85kg | |||||||
Tripod | M16 or 5/8†| |||||||
Features: Chinese patent,excellent shockproof function Excellent sealed structure for using in any weather Exclusive closed magnetic field,magnetically-dampened compensator Friction-braked rotation and endless horizontal drive 20* 22* 24* 26* 28* 30*32*.
If you need more details about the auto levels you can contact us directly!
For more information call us on 0997304086
