Dumpy Level/Tilting Level 7"
Product Details:
X
Product Description

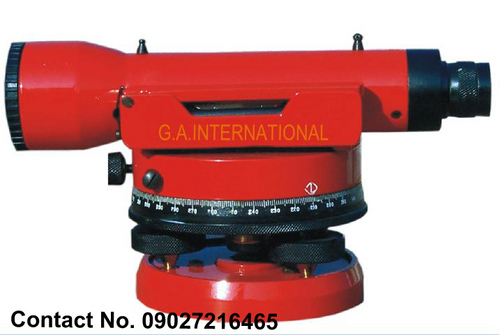

Dumpy Level / Tilting Level 7"
G.A.INTERNATIONAL's Dumpy Level / Tilting Level 7" is a precision instrument. Internal Focusing fitted with horizontal circle. Sensitive bubble is mounted on the side of the telescope.
Special Features :
- Strong compact and light in weight.
- Telescope is of the finest optical quality.
- The folding mirror enables the observer to read the bubble with ease.
TECHNICAL DATA
Telescope | Image | Length | Magnification | Objective Aperture | Object Glass Diameter | Short Focus | Stadia Ratio | Additive Constant | Accuracy | Circle Diameter | Graduation | Plate Level Sensitivity |
Model | Erect | 178 mm | 28 X | 38 mm | 40 mm | 1.5 M | 1:100 | 0 | ± 2-3 mm / Km | 95 mm | 10 Minutes | 40†/2 mm |
